GENERAL PURPOSE 12“ TRIANGLE

Call us for offer

Get your quote

Technical information

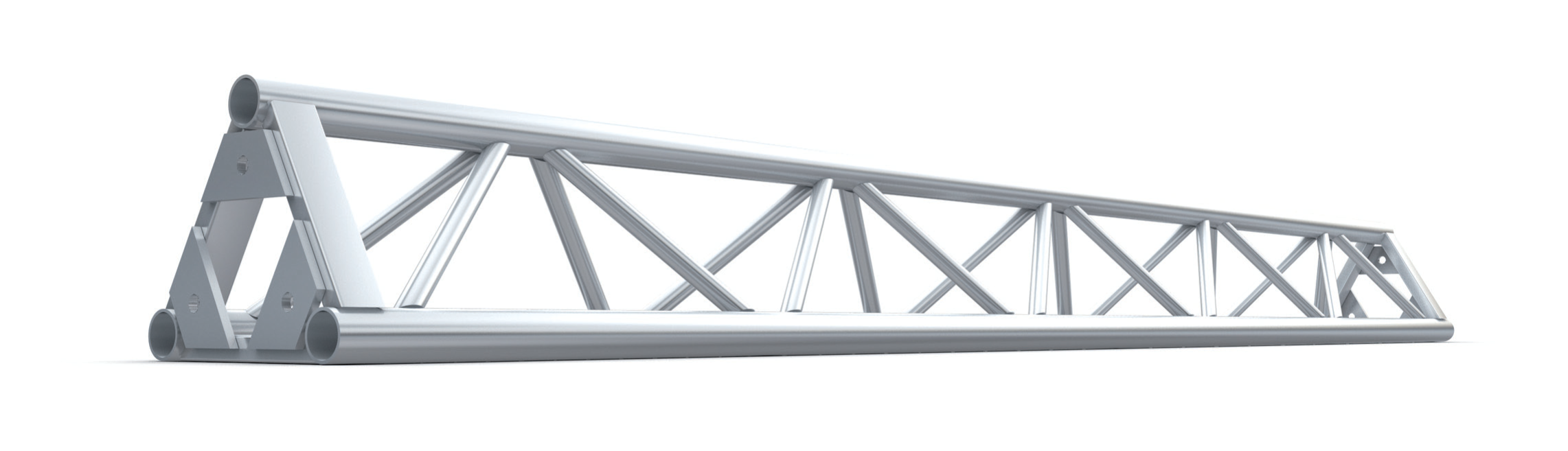

Our 12“ x 60 degree equilateral triangular truss is designed and manufactured for high strength, compared to the storage space required. The main chords are 2“ dia x 0.125“ wall and the diagonals are 1“ dia x 0.125“ wall in either 6082T6 or 6061T6 aluminum alloy.  The truss can be used with a Ground Support System with the appropriate Sleeve Blocks and Towers. Each truss section comes with all bolts.

Download PDF
