Technical information

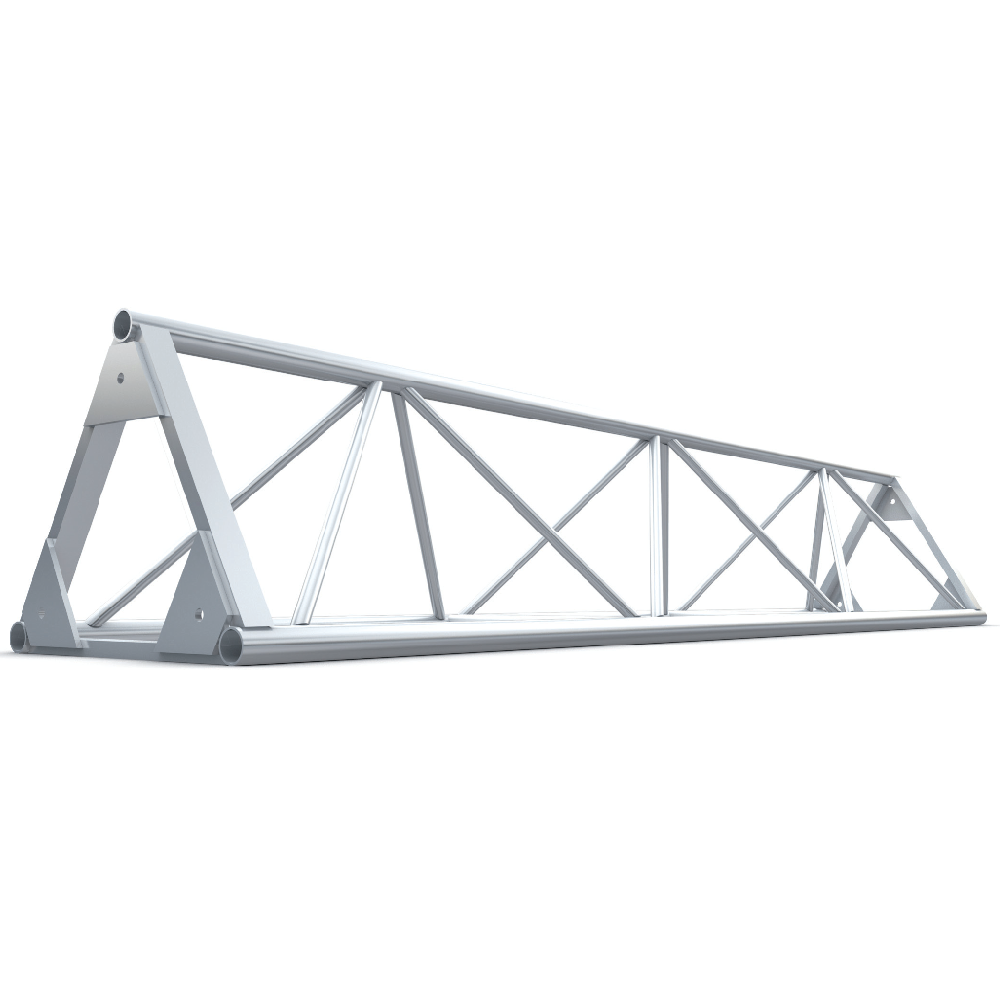

23 1/4“ x 60 degree equilateral triangular truss is designed and manufactured for high strength, compared to the storage space required. The main chords are 2“ dia x 0.125“ wall and the diagonals are 1“ dia x 0.125“ wall in either 6082T6 or 6061T6 aluminum alloy. With the appropriate Sleeve Blocks and Towers, the truss can be used with a Ground Support System. Each section is supplied with all bolts.

Download PDF
