MOVING LIGHT TRUSS

Call us for offer

Get your quote

Technical information

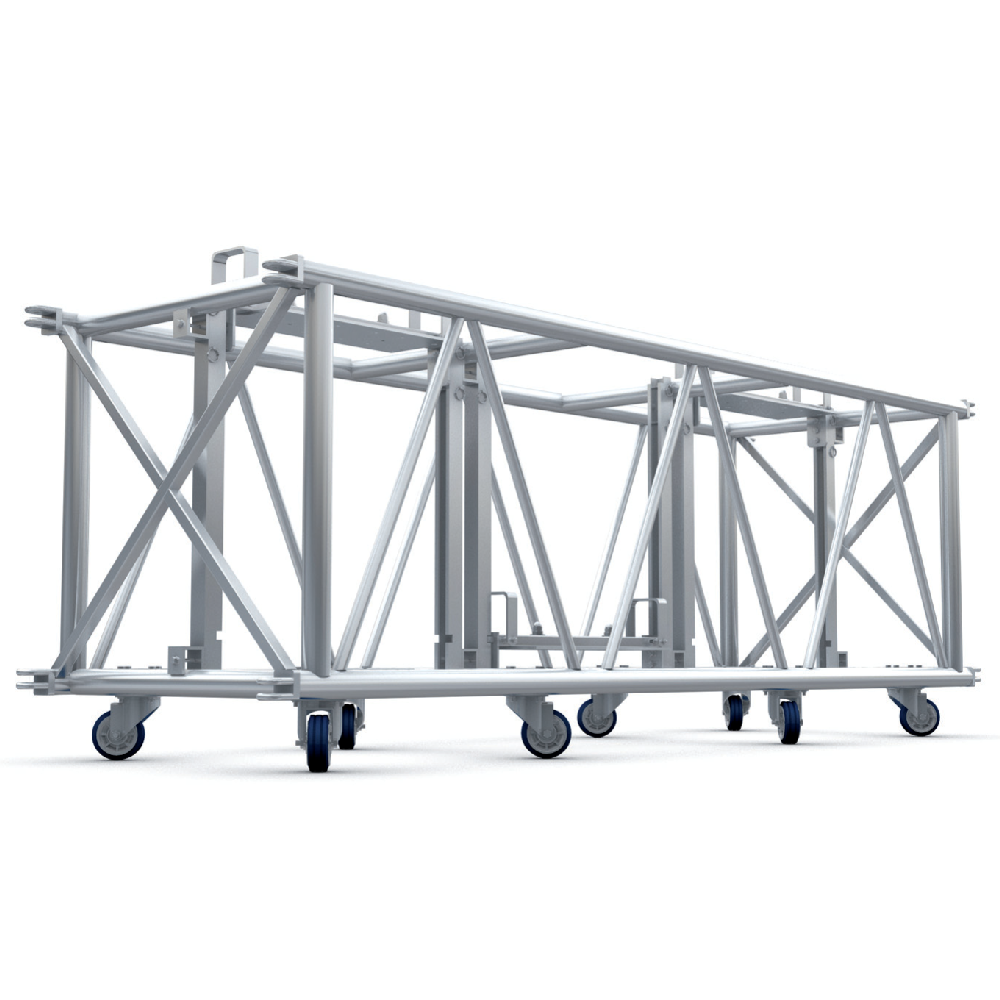

Moving Light truss has been designed around the Pre-rigged truss size. 91” x 30“ x 26“ in size (other sizes) are available. It
is manufactured from aluminum tube 6082-T6 with 2“ x .125“ wall thickness for main tubes and 1“ x .125“ wall tube for the
diagonals. Each truss piece has 8 caster wheels for easy maneuverability and bolts for the connection of truss pieces.
Each 91” truss is designed to carry 3 moving light fixtures. The moving lights are stored internally in the truss and can be lowered
to the working position when in use. This design reduces the amount of space required for lighting and rigging in the truck.
Two handles allow the lowering of each moving light. The following units have been tried in our
moving light trusses:
• Highend Studio Color and Studio Spot
• Coemar CF7 wash fixture
• Martins line of Mac fixtures; 250, 300, 500, 600, and 2000
Other fixtures may fit within the design of this truss by using a custom fitted plate.
The whole system can be used with our Ground Support System by using suitable sleeve blocks and towers.
Please note: no fixtures are included with truss

Download PDF
