MOVING LIGHT SUPERTRUSS

Call us for offer

Get your quote

Technical information

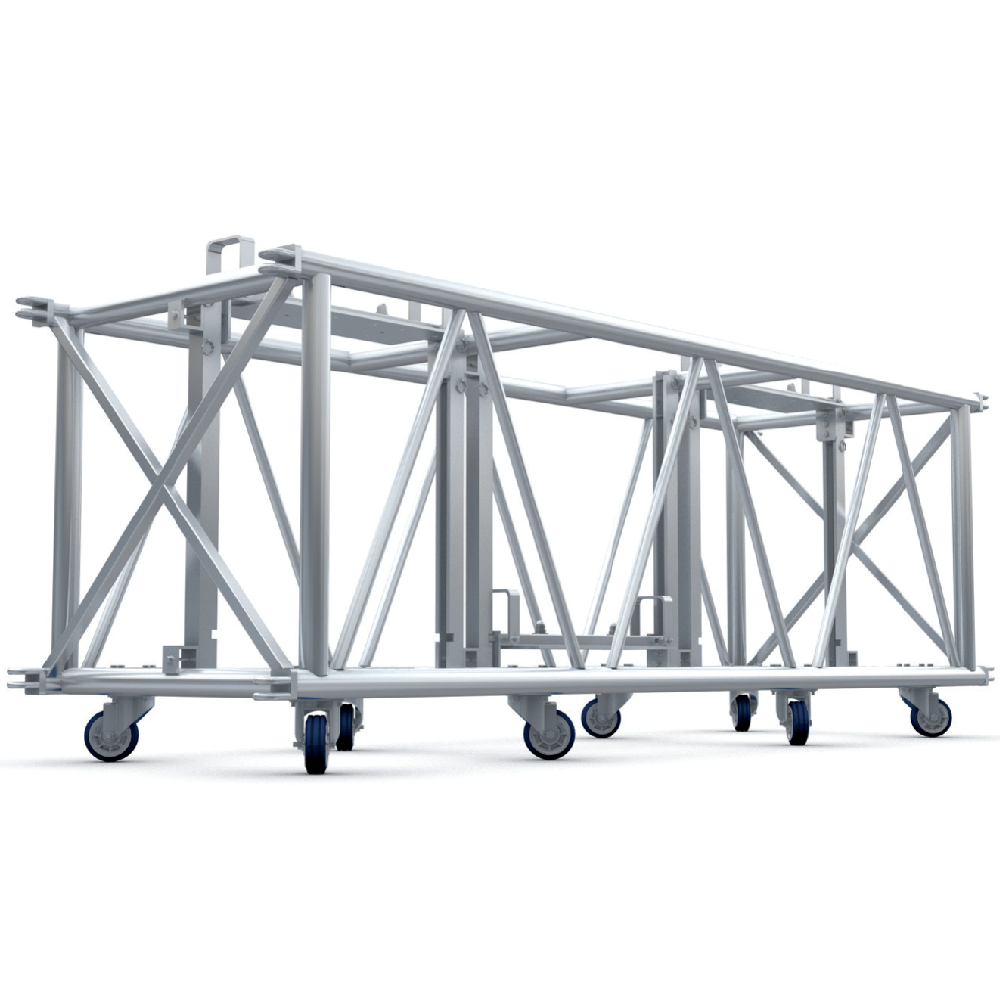

Moving Light supertruss has been designed around the Pre-rigged SuperTruss size of 96” x 30“ x 26“ (other sizes available). Moving light SuperTruss provides a substantial increase in load bearing capacity over the flat plate pre-rigged truss.

It is manufactured from 6061-T6 or 6082-T6 aluminum tubes with 2“ dia x .157“ wall for the main chords and 1“ dia x .125“ wall for the diagonals. Each truss length has 8 caster wheels for easy maneuverability, as well as pins and R-clips for connecting the truss together.

Each 96” truss length is designed to carry 3 moving light fixtures. The moving lights are stored internally in the truss and can be lowered to the working position when in use. This design reduces the amount of space required for lighting and rigging in the truck.

Two handles allow for the lowering of each moving light. The following units have been tested in our moving light trusses:
  • High-end Studio Color and Studio Spot
  • Coemar CF7 wash fixture
  • Martins line of Mac fixtures; 250, 300, 500, 600, and 2000
Other fixtures can be used with a custom fitted plate.

The entire system can be used with our Ground Support System by using suitable sleeve blocks and towers.

Please note: no fixtures are included with truss.
