GENERAL PURPOSE 20.5 × 20.5

Call us for more information

Click here to contact us

Technical information

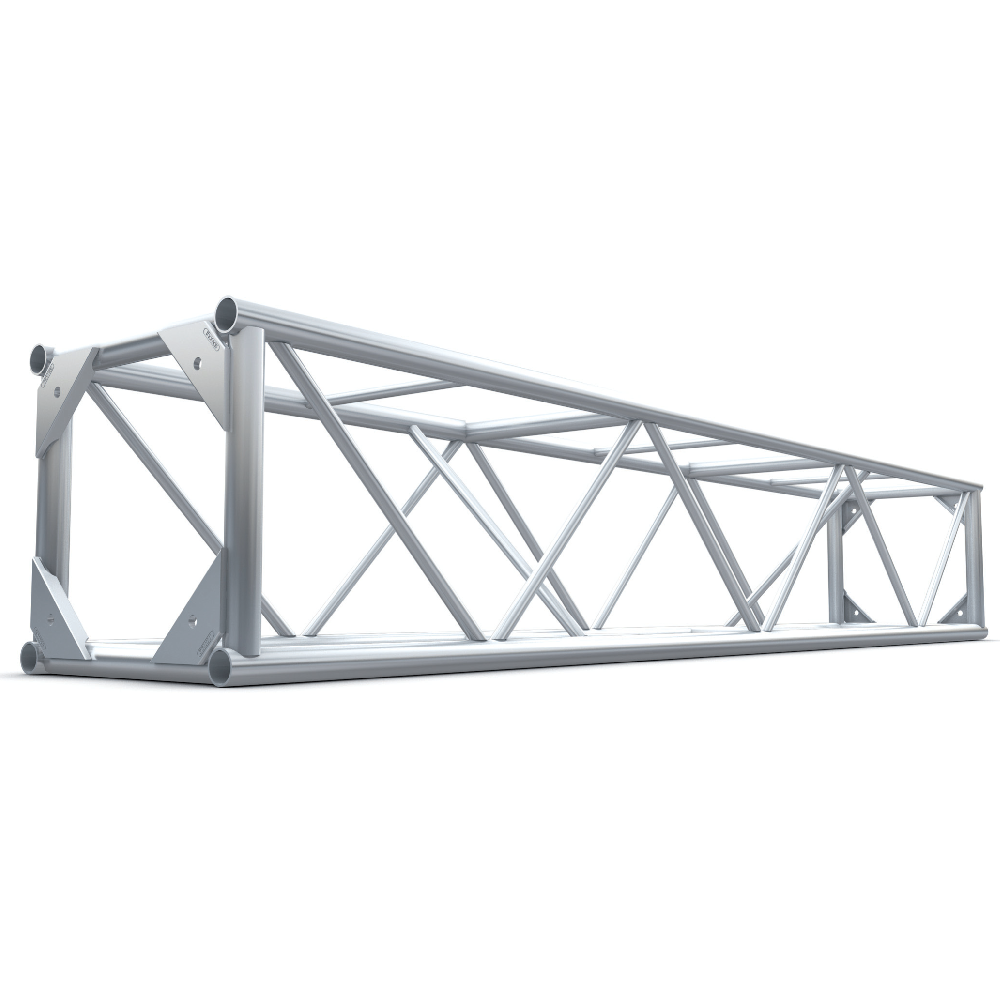

20.5“ x 20.5“ General Purpose truss manufactured from 6061T6 or 6082T6 aluminum using 2“ x 0.125“ wall and 1“ x 0.125“ wall tubes.  It is supplied as standard with bolts for connection. GP 20.5“ x 20.5“ is suitable for the majority of lighting applications, flying P.A. and any general purpose use. It can be used with a Ground Support System by incorporating suitable sleeve blocks and towers. This truss can also be supplied with castor wheels.

Download PDF
