GENERAL PURPOSE TRUSS 18 × 12

Call us for offer

Get your quote

Technical information

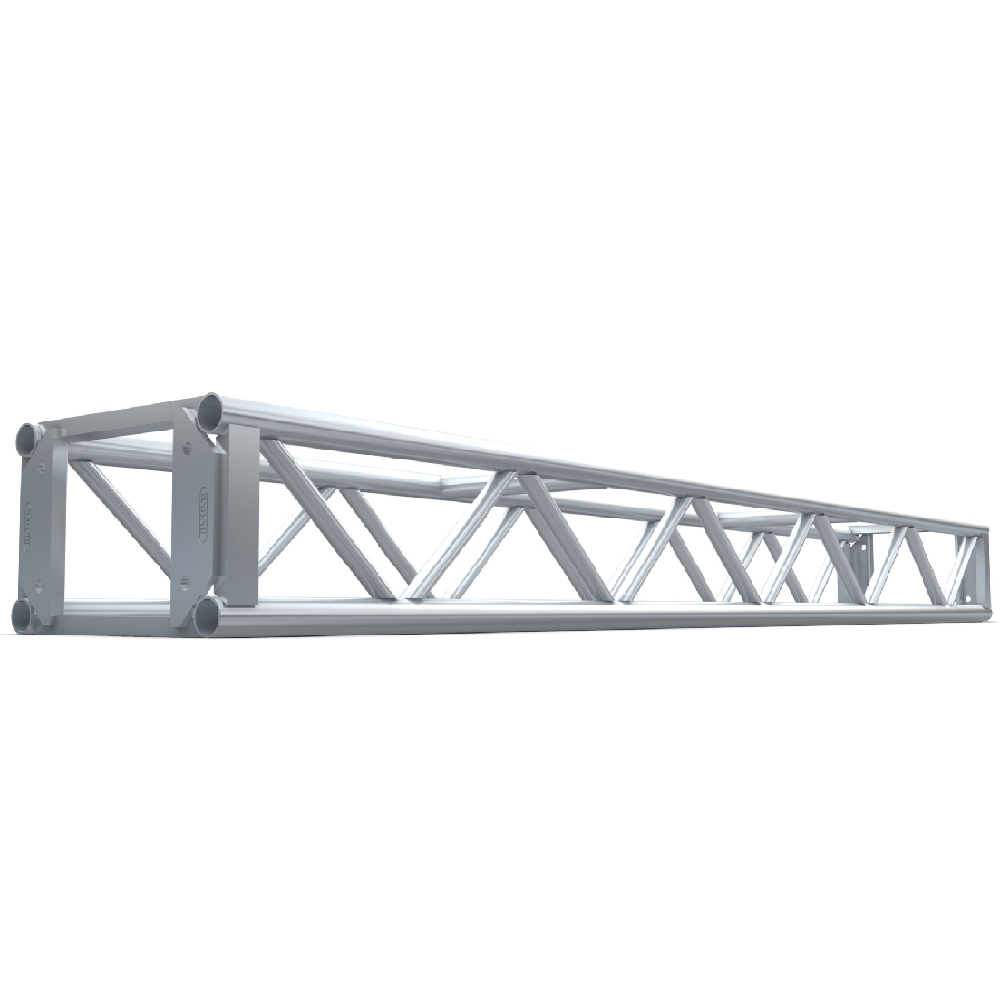

Our 18“ x 12“ truss is manufactured the same as our 12“ x 12“, but has the added advantage of an 18" width to accommodate 2 lighting bars back to back. It is also slightly stronger on longer spans. It is made from 6061T6 or 6082T6 aluminum alloy tubes with 2“ dia. x 0.125“ wall for the main chords and 1“ dia. x 0.125“ wall for the diagonals. With the appropriate sleeve blocks and towers, it can be used with a Ground Support System.

Download PDF
