SUPERTRUSS 20.5 × 30
Google+
Facebook
Share
Call us for more information
USA
+1 865 219-3700
Click here to contact us
Technical information

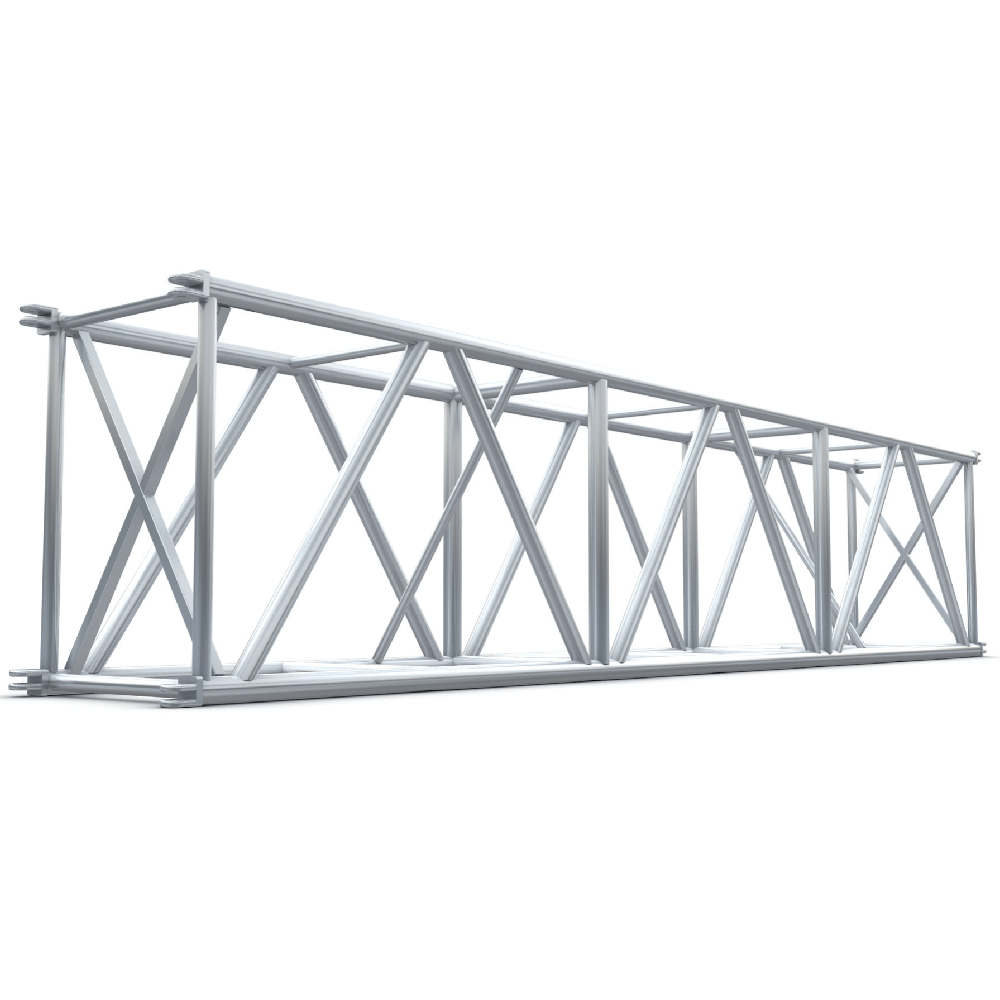

A revolutionary truss designed to o¦er all the advantages of the Thomas SuperTruss design in a 20.5” x 30” layout.
This truss is designed for the very long spans and heavy loading requirements for the entertainment industry. This truss is made using 6061T6 alloy 1.5” Schedule 80 for the main chords and 1.25” Schedule 80 for the diagonals. The 20.5” x 30” SuperTruss provides a substantial increase in load bearing capacity over GP Heavy Duty Truss.
Download PDF
Supertruss 20.5 × 30.pdf
Basic info
Corners
3-Way Gate
3-Way Gate with lifting point
