SUPERMEGA TRUSS 500 × 1000

Call us for offer

Get your quote

Technical information

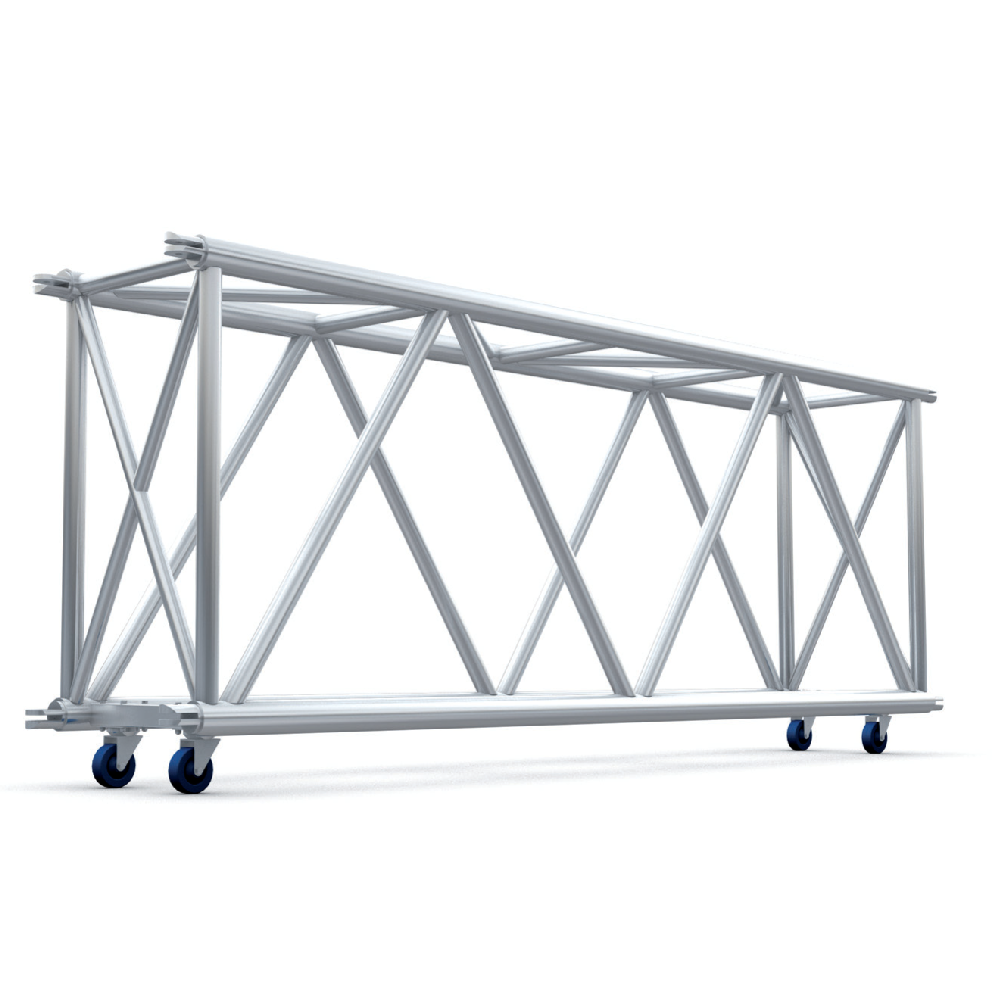

SuperMega Truss has been developed for those applications that require monumental load bearing capacity.
The truss is manufactured from 6082T6 or 6061T6 aluminum using 3“ diameter main chords, 1.96“ cross boom tubes and 1.5“ diagonals.

The end connection is a scaled up version of the SuperTruss fork for easy connection of truss lengths and high strength.

Manoeuvrability is ensured by the standard fitting of casters. This truss has a maximum clear span capability of 127‘ without lateral restraint. If lateral restraint is available mid span, the maximum span can be up to 157‘. This truss is an excellent basis for a “Mothergrid“ or a large Roof System.
